Solar Switchboard Upgrade Enhances Chelmer’s Air Conditioning

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Why Choose Precision Electrical & Air for Your Switchboard Enhancement?

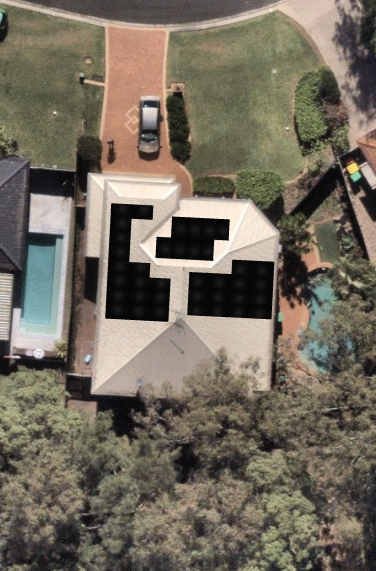

This homeowner in Chelmer undertook an extensive renovation project that not only included the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system but also a 30kWh modular battery storage solution and comprehensive blackout protection for the entire residence. Furthermore, a new ducted air conditioning system was meticulously incorporated into the overall design. Before connecting these advanced systems, it was crucial to thoroughly assess and enhance the existing switchboard to ensure compliance with the latest regulations and effectively manage the increased electrical loads that these installations would inevitably introduce.

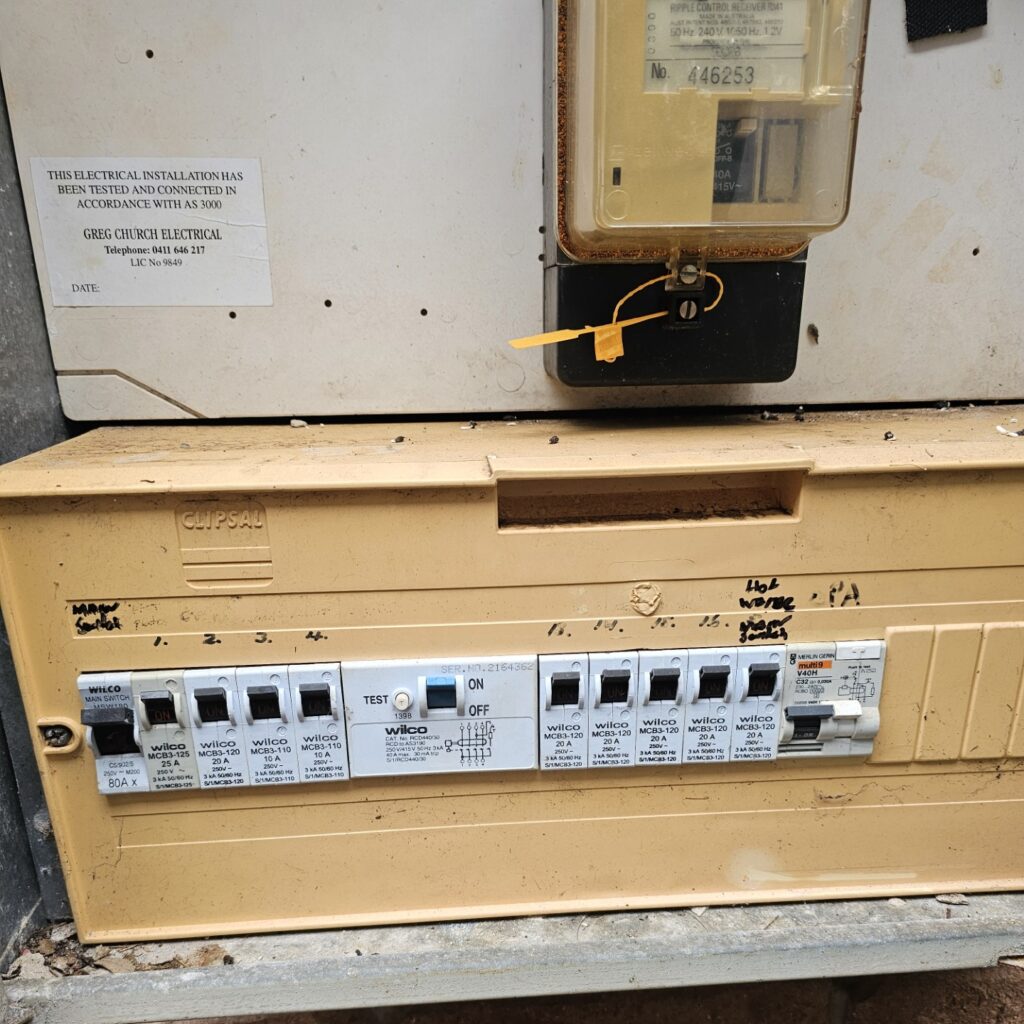

The original switchboard was outdated, featuring obsolete circuit breakers and equipped with only a single Residual Current Device (RCD) that provided minimal protection for the entire property. It was incapable of supporting the necessary solar energy integration and battery storage solutions. Additionally, the circuit labeling was inadequate, rendering it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance posed a significant risk to the efficient operation of the newly upgraded systems, making an enhancement imperative.

Is a Three-Phase Upgrade Truly Necessary for Your System?

When evaluating the specifications of a 17.86kW solar system paired with a 30kWh battery, there exists a common misconception that a three-phase upgrade is essential. This misunderstanding can lead to substantial financial repercussions for the homeowner, potentially incurring costs that range anywhere from £3,500 to £6,000, along with a protracted wait for approval from Energex regarding network modifications.

Conducting a Comprehensive Initial Technical Assessment

Two pivotal factors played a significant role in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically located in close proximity to the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically designed to alleviate demand on the grid rather than exacerbate it, there was no technical justification from the network's perspective for the need for a three-phase upgrade. Additionally, the ducted air conditioning system was also assessed and found to comply with essential parameters for efficient single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard was upgraded to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards, thereby mitigating any risks associated with increased power demands.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

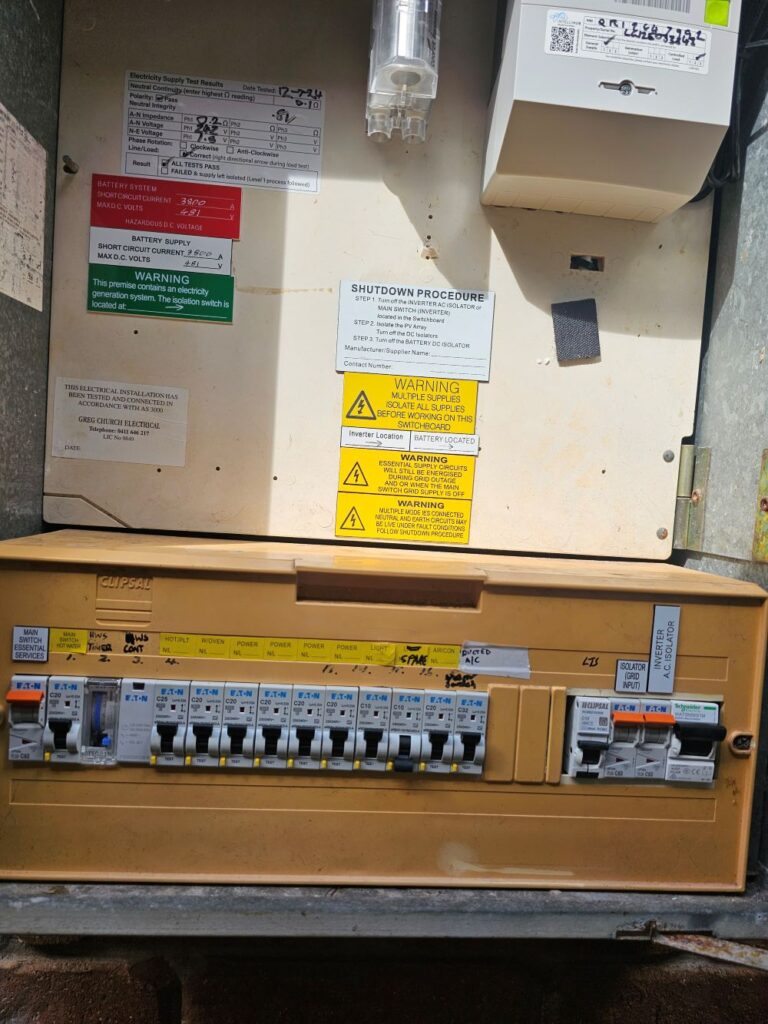

The existing switchboard underwent a complete dismantling and an exhaustive reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, and each breaker was meticulously labelled for simple identification. The circuits were carefully divided; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were each allocated dedicated circuits to bolster safety and ensure compliance with contemporary regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the utilisation of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure optimal functionality and efficiency of the hot water system, enhancing overall energy management.

The upgraded switchboard was meticulously designed to facilitate seamless integration with both the solar inverter and the battery storage system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully performed and documented for the switchboard, establishing its reliability and safety.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Realises Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances, ultimately saving both time and money.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required for all properties. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear and concise assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property for any necessary upgrades.

We assure you that no upselling occurs; you will receive an accurate evaluation tailored specifically to your home and its unique electrical needs.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies primarily on two key factors: voltage rise and load demand. Electricians meticulously evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is perfectly adequate. However, if the voltage rise exceeds this threshold, three-phase power may become essential to distribute the export load across three conductors, effectively maintaining the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system feeds power back into the grid. The greater the distance between your home and the street junction, the higher the resistance in the cable, which results in a more significant voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must accurately calculate whether your solar system's performance stays within this limit to determine whether single-phase or three-phase power is suitable for your property.
